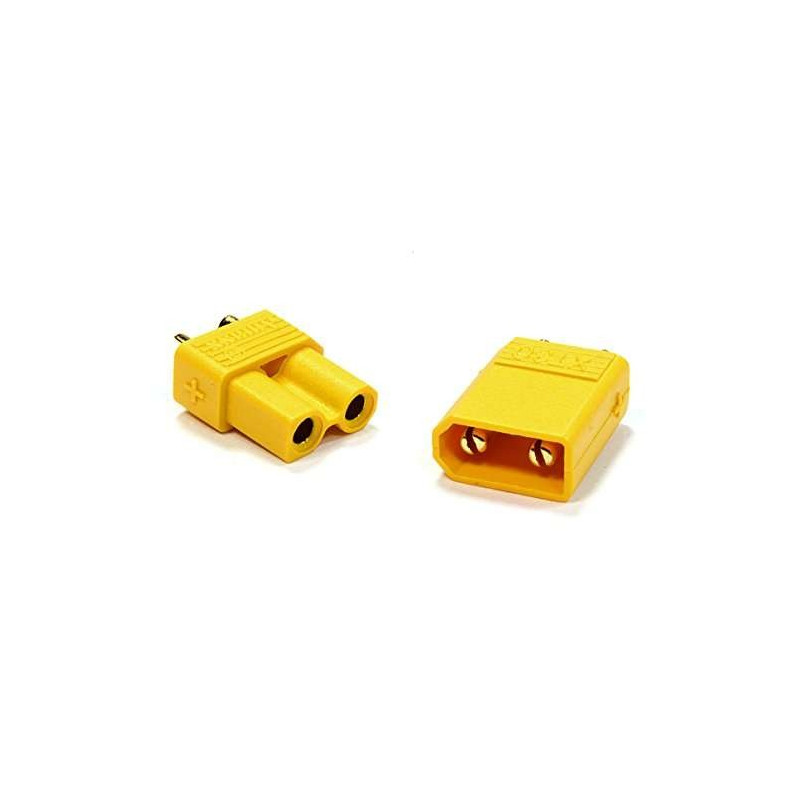

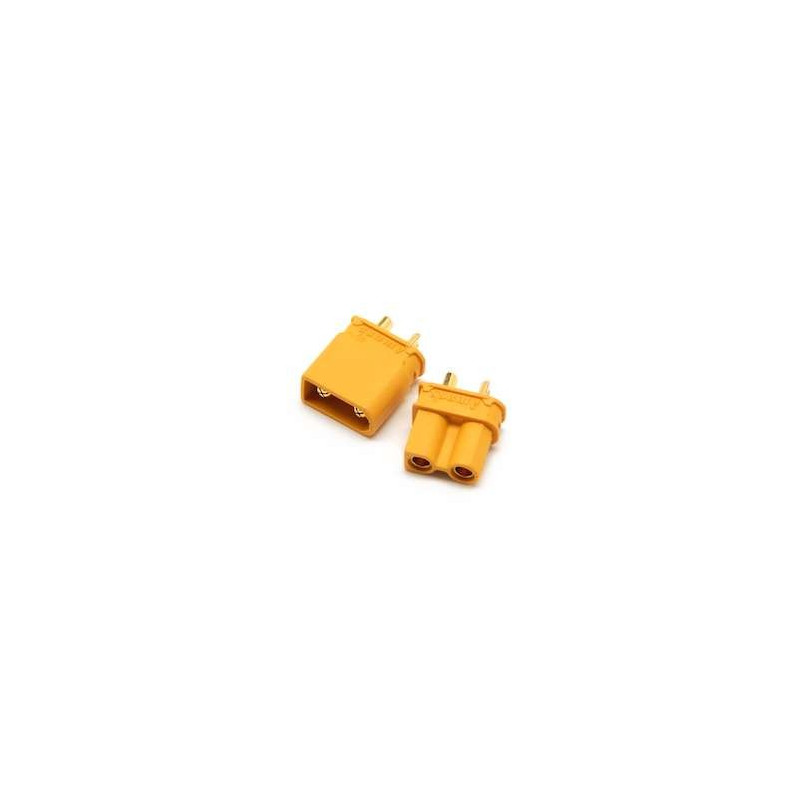

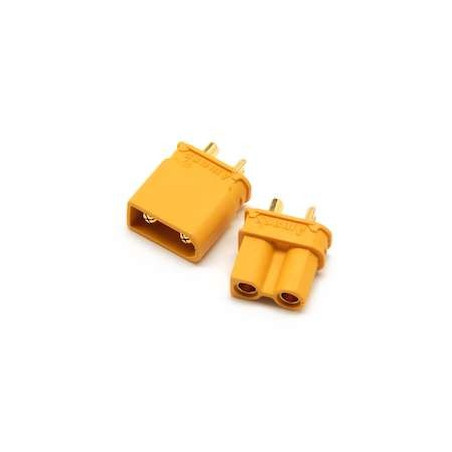

XT30 Connectors (2 Pairs)

The XT30 Connectors offer a reliable, high-performance solution for compact RC power systems. Designed as a superior alternative to mini-T and mini JST connectors, they support up to 30A continuous current while maintaining a lightweight, space-efficient form factor.

Constructed from high-temperature-resistant nylon and featuring gold-plated connectors, these units provide both durability and excellent conductivity. The internal connector design is optimised for improved current flow, helping to minimise resistance and enhance overall power delivery. Suitable for drones, RC cars, and other compact RC applications, the XT30 is a practical, efficient choice for hobbyists and builders seeking dependable connectivity in tight spaces.

Specifications:

• Continuous Current Rating: 30A

• Connector Material: Gold-plated contacts

• Housing Material: High-temperature nylon

• Male Weight: 0.7g

• Female Weight: 0.9g

• Male Dimensions: 12 x 11 x 6mm

• Female Dimensions: 13 x 11 x 6mm

• Contact Size: 2 x 6mm

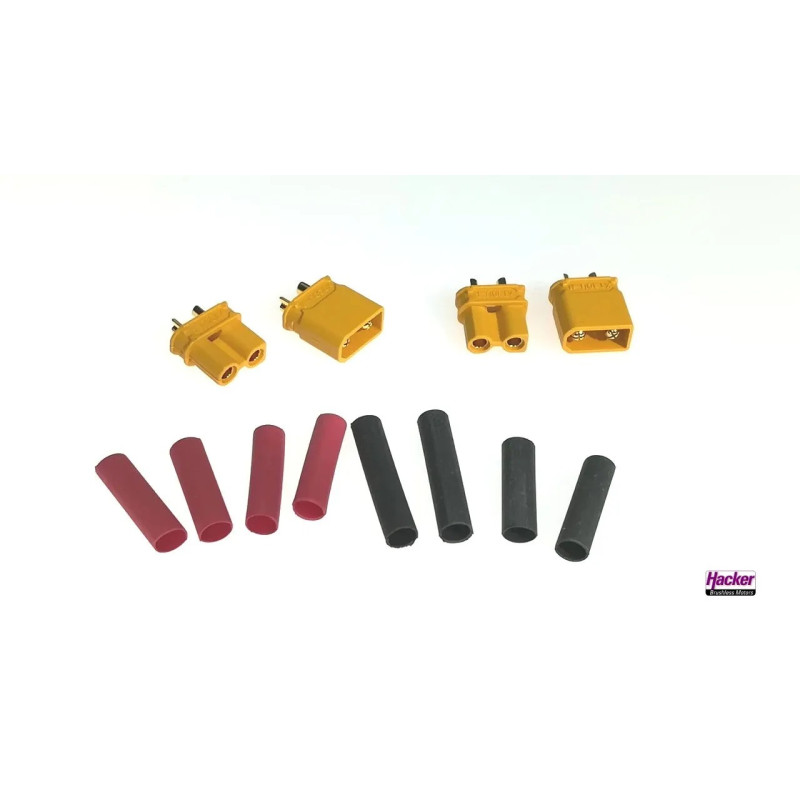

Includes:

• 2 x XT30 Male Connectors

• 2 x XT30 Female Connectors

• Heat Shrink Tubing
