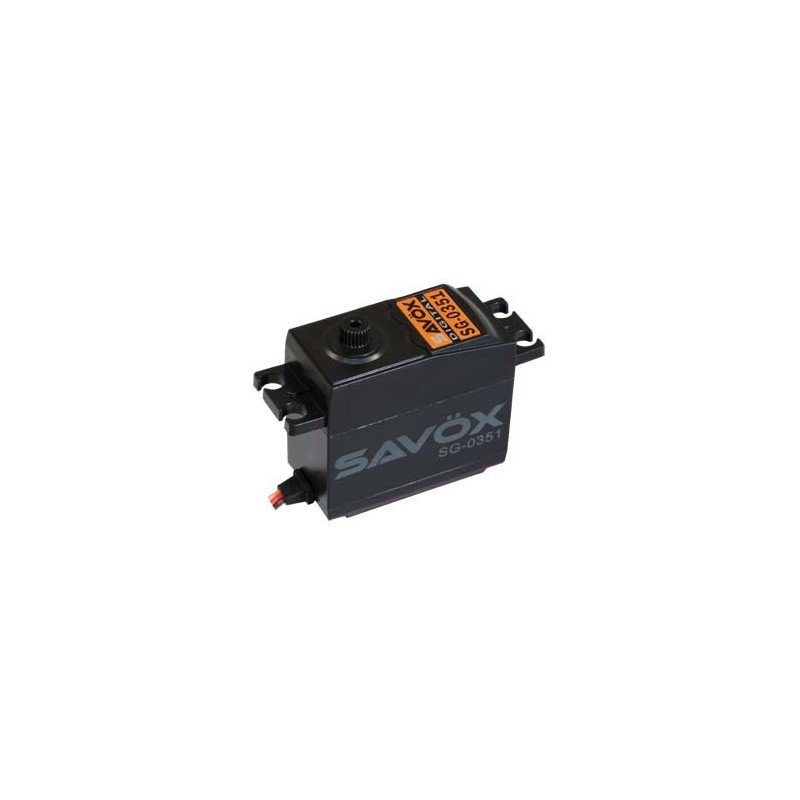

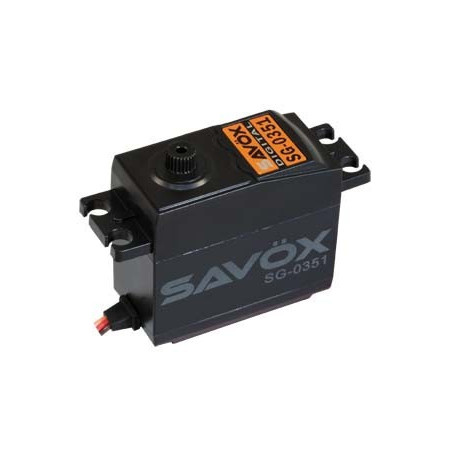

Savox Standard Digital Servo SG-0351

The Savox SG-0351 Standard Digital Servo offers consistent, reliable performance for a wide range of RC applications. Built with dual ball bearings and industrial-grade plastic gears, it provides stable operation with reduced friction and noise. The brushed DC motor delivers precise, proportional control, while the 25T spline output ensures broad compatibility with most servo horns and linkages.

Its durable design supports a working voltage of 4.8V to 6.0V, with torque ratings up to 4.1 kg/cm and a fast 0.17 sec/60° response at 6V. This servo is engineered to operate across varying conditions with a wide temperature range from -10°C to 50°C and a high refresh rate of 240Hz, making it ideal for both casual and demanding use.

Specifications:

• Torque:
  @4.8V: 3.2 kg/cm (44.4 oz-in)
  @6.0V: 4.1 kg/cm (56.9 oz-in)

• Speed:
  @4.8V: 0.22 sec/60°
  @6.0V: 0.17 sec/60°

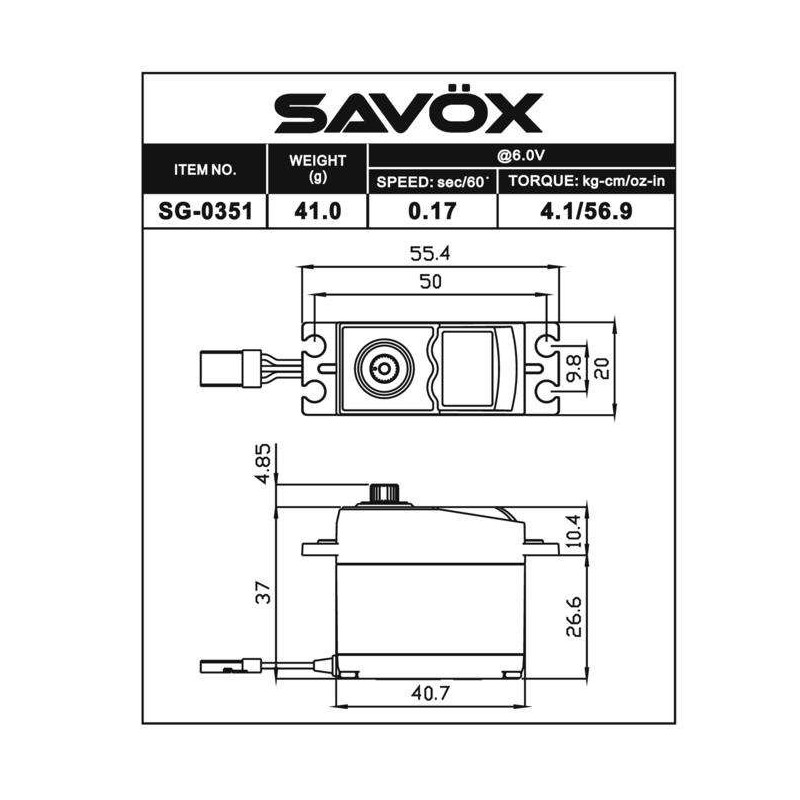

• Dimensions: 40.7 × 20.0 × 37.0 mm

• Weight: 41.0 g

• Motor Type: Brushed DC

• Gear Material: Industrial Plastic

• Bearings: Dual Ball Bearings

• Operating Voltage: 4.8V–6.0V

• Temperature Range: -10°C to 50°C

• Running Current (no load): 100mA @4.8V, 120mA @6.0V

• Stall Current: 800mA @4.8V, 1000mA @6.0V

• Idle Current: 5mA

• Wire Length: 300 ± 5mm

• Output Gear Spline: 25 Tooth

• Operating Travel: 120° (1000 → 2000 µs)

• Neutral Position: 1500 µs

• Pulse Width Range: 800 → 2200 µs

• Maximum Travel: ~164° (800 → 2200 µs)

• Refresh Rate: 240 Hz

Includes:
1 x Savox SG-0351 Standard Digital Servo
